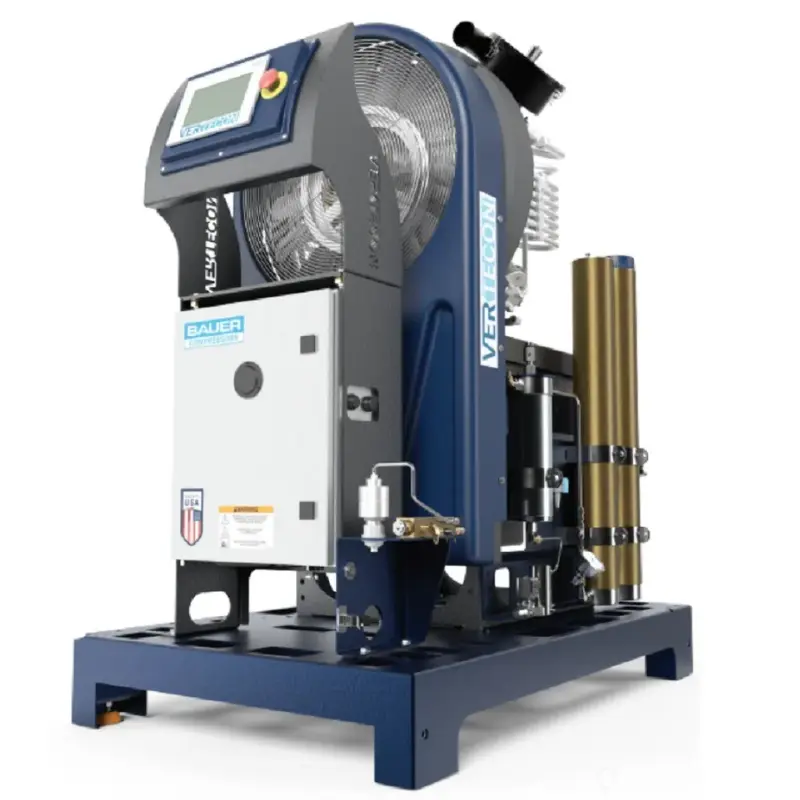

BAUER 5000 PSI Open High Pressure 4-Stage Breathing Air Compressors – VEC20-E3

Description

Introducing the BAUER 5000 PSI Open High Pressure 4-Stage Breathing Air Compressors a robust and advanced solution for high-pressure air needs. Engineered for superior performance and reliability, this compressor is ideal for demanding applications where consistent air quality and efficient operation are essential. With its cutting-edge design and extensive feature set, this compressor is built to deliver exceptional results in a variety of environments.

Detailed Specifications

• Pressure: Up to 6000 PSIG (414 BAR)
• Charging Rate: 5 to 26.4 SCFM (142 to 748 L/MIN)
• Power: 5 to 20 HP (3.7 to 15 kW)

Standard Scope of Supply

BAUER Breathing Air Purification System

Ensures clean, high-quality air for safe and reliable breathing.

Open Vertical Cabinet

Constructed from formed sheet and plate goods, this design provides a solid foundation for all pressure-bearing components and enhances overall durability.

Modern Design with Easy Maintenance Access

Features an innovative design that allows for unsurpassed maintenance accessibility without the need for hand tools. Routine checks and fluid level confirmations are straightforward and hassle-free.

BAUER PLC Based Controller with 7” Color HMI Touchscreen Display

Provides intuitive control and monitoring with a user-friendly interface, allowing for precise adjustments and real-time data visualization.

Belt Adjustment Tool

Simplifies belt maintenance and adjustments, ensuring optimal performance.

NEMA 4 Rated Electrical Enclosure with UL® Listed Control Panel

Offers enhanced protection against environmental conditions and meets high safety standards.

Wiring Harnesses in Corrugated Loom with Number Coding

Facilitates easy system diagnosis and maintenance with clearly coded wiring harnesses.

Emergency Stop Push Button

Ensures rapid response in emergencies, providing a quick shutdown option to protect the compressor and operators.

Stainless Steel Tubing

Features .049 wall thickness stainless steel tubing throughout, eliminating the use of cheap plastic tubing for superior durability and reliability.

Rugged Powder Coat Finish

Enhances durability and resistance to environmental factors, extending the compressor’s service life.

Zero Loss Automatic Condensate Drain System

Efficiently removes condensate without loss of compressed air, optimizing performance and reducing maintenance.

Interstage Pressure Gauges

Locally mounted for easy monitoring of pressure at each stage of compression.

Compressor On/Off, Final Pressure, Oil Pressure, and High Temperature Shutdowns

Comprehensive safety features protect the compressor from potential damage.

Motor Overload Indication

Alerts operators to potential motor overload conditions, ensuring timely intervention.

Final Separator Counter with Shutdown and Operator Indication

Provides accurate monitoring of separator performance and indicates when maintenance is required.

Integrated Positioning Base

Ensures correct installation every time, simplifying setup and improving operational efficiency.

Available Accessories (Factory Installed)

• CO Monitoring System: Real-time carbon monoxide detection for enhanced safety and compliance.
• B-SECURUS – Electronic Moisture Monitoring: Advanced moisture monitoring for the purification system, ensuring consistent air quality.
• B-Kool (Floor Mount Only): Provides additional cooling capabilities to maintain optimal operating temperatures.
• H2S Monitoring System with Audible Alarm: Detects hydrogen sulfide levels with an audible alarm for immediate safety alerts.
• Insulated Sound Attenuated Cabinet: Reduces operational noise while providing insulation to maintain optimal performance.

System Footprint

• Dimensions (L x W x H): 54” x 34” x 56” (1372.6 mm x 863.6 mm x 1422.4 mm)
• Weight: 800 – 900 lb. (363 – 408.2 kg)

Additional Features and Benefits

• Enhanced Accessibility: The open vertical cabinet design allows for easy access to all components, simplifying maintenance and service tasks.
• User-Friendly Operation: The 7” color HMI touchscreen display and PLC based controller provide clear and intuitive control over compressor functions, making operation straightforward and efficient.
• Robust Construction: Stainless steel tubing and a rugged powder coat finish ensure long-lasting durability even in challenging environments.
• Efficient Operation: The zero loss automatic condensate drain system and advanced air purification features enhance operational efficiency and reduce downtime.
• Safety and Reliability: Comprehensive shutdown systems, emergency stop buttons, and motor overload indications provide enhanced safety and reliability, protecting both the compressor and its operators.

Ideal Applications

The BAUER 5000 PSI Open High Pressure 4-Stage Breathing Air Compressor is designed for:

• Industrial Applications: Providing high-pressure air for demanding industrial processes and operations.
• Diving Operations: Ensuring a steady and reliable supply of breathing air for underwater activities.
• Emergency Services: Delivering dependable air supply for critical situations such as firefighting and rescue operations.

Choose the BAUER 5000 PSI Open High Pressure 4-Stage Breathing Air Compressor for a superior combination of performance, durability, and user-friendly features. Engineered to meet the highest standards of air quality and operational efficiency, this compressor is the ultimate choice for high-pressure air applications.
