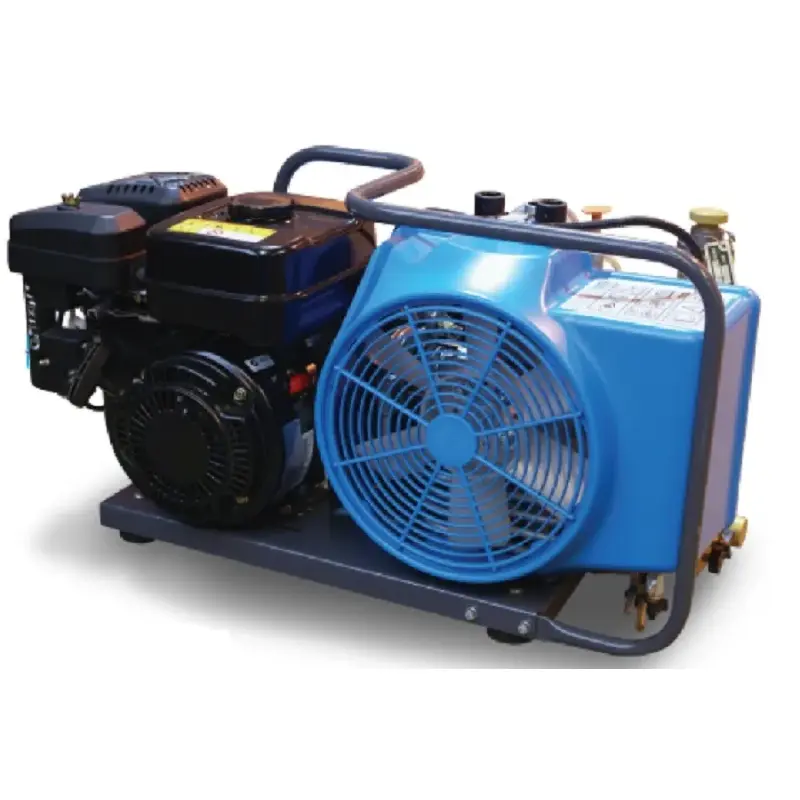

BAUER 5000 PSI High Pressure 3-Stage Breathing Air Compressors – JRII-E3

Description

The BAUER 5000 PSI High Pressure 3-Stage Breathing Air Compressors is engineered to deliver top-notch performance, reliability, and safety for a variety of breathing air applications. Designed to meet the stringent demands of industrial, diving, and firefighting applications, this compressor ensures that you always have a dependable source of high-quality breathing air.

Detailed Specifications

Pressure: 5000 PSIG (345 BAR)
Charging Rate: 2.9 to 4.9 SCFM (82 to 139 L/MIN)
Power: 2 to 6 HP (1.5 to 4.5 kW)

Standard Scope of Supply

BAUER P0 Breathing Air Purification System

Ensures clean, breathable air by removing contaminants.

Belt Guard

Designed to meet OSHA guidelines for safety and protection.

Inlet Filter

Maintains air quality by filtering incoming air.

Vibration Isolators

Reduce noise and wear by minimizing vibration.

High Temperature Switch (G Drives)

Provides added protection by shutting down the unit if temperatures exceed safe limits.

Five Foot Fill Hose Assembly with SCUBA Yoke

For convenient and versatile filling.

Bleed Valve and Pressure Gauge

Simplifies pressure management and ensures accurate readings.

OCEANUS Models (Additional Features)

• Sturdy, Long-Lasting Low Pressure Oil Pump: Enhances durability and performance.
• Large Oil Sump: Allows for shipboard inclination of up to 30° (20° for G Drive), ensuring stable operation in marine environments.
• High Capacity Filling: Capable of filling and maintaining up to a two-cylinder 5000 PSIG UN storage system.
• Corrosion-Resistant Coolers and Stainless Steel Frame: Designed to withstand harsh environments and extend the lifespan of the unit.

System Footprint

• Dimensions (L x W x H): JUNIOR II 42 x 19 x 23 inches (1067 x 483 x 584 mm)
• Weight: JUNIOR II 89-165 lb (40-75 kg)

Available Accessories (Factory Installed)

• Visual CO/Moisture Monitor Indicator: Provides real-time monitoring for carbon monoxide and moisture levels.
• Final Pressure Switch for Gasoline Engine: Adds an extra layer of safety by controlling the engine based on pressure.
• Hourmeter/Tachometer (G Drive): Tracks operating hours and engine speed for maintenance and performance monitoring.

Additional Features and Benefits

• Enhanced Safety: The high-temperature switch and vibration isolators ensure the unit operates safely under various conditions.
• Compact and Portable Design: Despite its robust capabilities, the compressor’s compact size allows for easy transport and installation.
• Energy Efficiency: With a power range of 2 to 6 HP, the unit offers energy-efficient operation, reducing operational costs.
• Durability: The corrosion-resistant components and stainless steel frame ensure long-lasting performance, even in demanding environments.
• User-Friendly Interface: The easy-to-read pressure gauge and accessible bleed valve make operation straightforward and efficient.

Ideal Applications

The BAUER 5000 PSI High Pressure 3-Stage Breathing Air Compressor is perfect for:

• Diving Operations: Ensuring safe, high-quality air for underwater activities.
• Firefighting: Providing reliable breathing air in critical situations.
• Industrial Use: Suitable for a range of industrial applications requiring clean, high-pressure air.

Invest in the BAUER 5000 PSI High Pressure 3-Stage Breathing Air Compressor for unmatched reliability, performance, and safety in your breathing air supply needs.
